Compare K-Series

Compare Devices K-Series Features Load Comparison Types of Load Which Level?

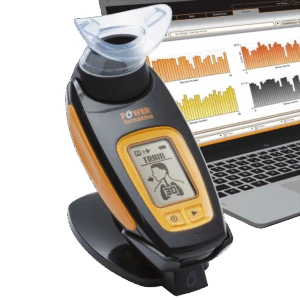

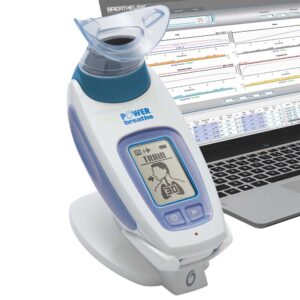

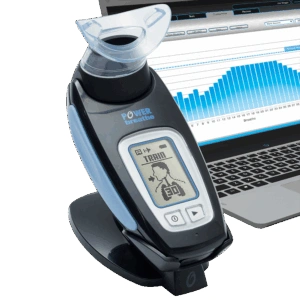

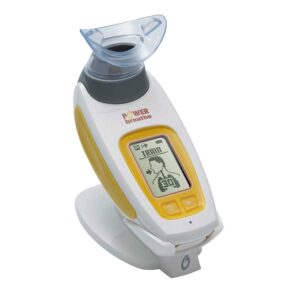

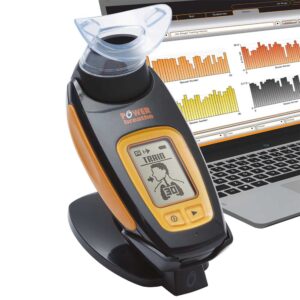

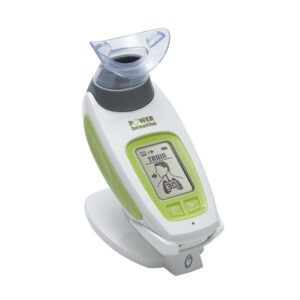

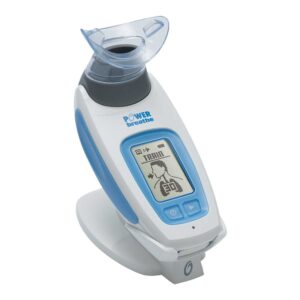

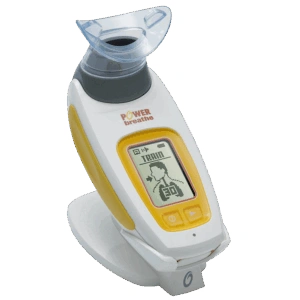

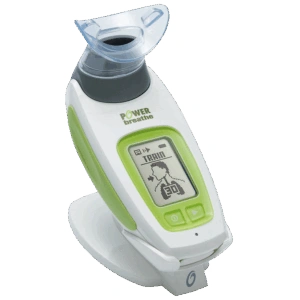

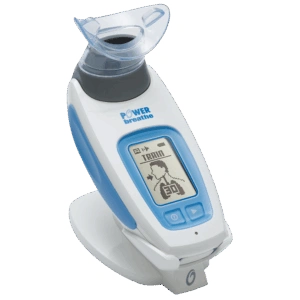

Features	K1 £475.00	K3 £550.00	K4 £599.00	K5 £675.00	KHP2 POA	KH2 POA
Standard Features
Multi-User Options Personal interchangeable Valve Heads sold separately and/or single user filters available for clinical use.
Washable Valve The K-Series and KH-Series valve head can be removed for cleaning using POWERbreathe Cleansing Tablets (sold separately).
Rechargeable Rechargeable battery with auto power-off and charge indicator. KH-Series devices can also be powered via PC or mains power.
Multi-user Filter Option Unique spacer which allows the connection of POWERbreathe TrySafeTM filters for effective filtration of bacteria and viruses. Offers exceptional protection against cross infection.
Training Features
Tapered load & auto-optimising tech. The unique electronically controlled resistance valve reduces the training load as your muscle strength naturally declines throughout your in-breath. This optimises your training, allowing you to engage your breathing muscles all the way to the end of each breathe.
Manual training intensity option The training intensity adjustment option allows start resistance to be manually set from 5 to 200cmH2O to suit your personal training requirements.
Breathing pacing guidance Buzzer indicates when the user should inhale in order to optimise breathing patterns and prevent hyperventilation.
Current training session breath counter Displays number of breaths remaining in current training session.
End of training session indicator Alarm indicates that a training session is over and device shows results.
Warm-up mode Can be used to warm-up the inspiratory muscles prior to exercise.
Cool-down mode Can be used to cool-down the respiratory muscles after exercise.
Custom mode Use the Breathe-Link Software to personalise your training session.
Training Feedback and Testing Features
Load (cmH2O) Measure of the resistance to inhalation and is equivalent to the weight being lifted.
Power - current session average (watts) Current session average power (watts).
Inhaled volume - average per breath (litres) Current session average volume (litres).
PIF/Flow Peak Inspiratory Flow (litres/sec).
Volume Maximum inhaled volume (litres).
MIP Maximal inspiratory muscle strength (cmH2O).
MIP rating Comparison with population normal values based upon user stats (Age, Height, Weight, Gender).
Single Breath Test (Test Mode) Measures inspiratory muscle strength, peak inspiratory flow rate and inhaled volume in a single breath. Results shown as S-Index.
S-Index Rating (poor, fair, average, good, excellent) Results of the Single Breath Test are shown by comparing average population values based upon user stats (Age, Height, Weight, Gender).
T-Index - current session (%) Training Index (%) Measure of training session effectiveness.
T-Index rating (low, med, high) Rating of training session effectiveness.
Breathing energy (joules) Measures the mechanical work of breathing during your breathing training session. (Joules).
Graphical breathing energy history (last 36 sessions) Graph of previous 36 Breathing Energy results.
Session number Number of training sessions completed.
Test mode (PIF/Flow) Measures Peak Inspiratory Flow for inspiratory muscle assessment.
Test mode (MIP) Measures Maximal Inspiratory Pressure (highest 1 second average).
Endurance Programme Perform a 150-breath session to completely fatigue the inspiratory muscles.
Graphical Load, Power and Volume history (last 36 sessions) Graph of previous 36 training load results, average power results and average volume results allowing you to review trends and personal best results.
Breathe-Link® Features
Breathe-Link® Software for real-time breathing measurement and analysis PC and Mac connectivity via USB maximises training & performance testing in real time. Select specific training and testing parameters and then assess inspiratory muscle condition and training progress to try and beat previous scores. Stores results for analysis. Import and Export .ble files allowing data to be shared amongst Breathe-Link users.
PC and Mac graphical view Easy to understand live feedback analysis that monitors each breath, providing visual feedback to help improve your performance.
Breathe-Link® custom training mode Allows you to create and upload your own personalised breathing training sessions.
Training statistics review Review the details and trends of your Breathe-Link training sessions.
Breathe-Link® ProView advanced analytics For detailed, simultaneous plotting & analysis of all inspiratory muscle training data.
Print/PDF generator Keep detailed high resolution records of each session. Share training history for analysis in printed or PDF format.
Live real-time performance monitoring See real-time test and training performance live on screen.
Breathe-Link® Medic Patient Data Integrated patient view showing all registered patients on the Breathe-Link Medic software. The Patient View master control panel allows you to easily access and navigate patients IMT training data.
Information subject to change due to manufacturers continuous programme of development.
	Buy	Buy	Buy	Buy	Contact Us	Contact Us

Compare K-Series

Features

K1

£475.00

K3

£550.00

K4

£599.00

K5

£675.00

KHP2

POA

KH2

POA

Standard Features

Multi-User Options

Washable Valve

Rechargeable

Multi-user Filter Option

Training Features

Tapered load & auto-optimising tech.

Manual training intensity option

Breathing pacing guidance

Current training session breath counter

End of training session indicator

Warm-up mode

Cool-down mode

Custom mode

Training Feedback and Testing Features

Load (cmH2O)

Power - current session average (watts)

Inhaled volume - average per breath (litres)

PIF/Flow

Volume

MIP

MIP rating

Single Breath Test (Test Mode)

S-Index Rating (poor, fair, average, good, excellent)

T-Index - current session (%)

T-Index rating (low, med, high)

Breathing energy (joules)

Graphical breathing energy history (last 36 sessions)

Session number

Test mode (PIF/Flow)

Test mode (MIP)

Endurance Programme

Graphical Load, Power and Volume history (last 36 sessions)

Breathe-Link® Features

Breathe-Link® Software for real-time breathing measurement and analysis

PC and Mac graphical view

Breathe-Link® custom training mode

Training statistics review

Breathe-Link® ProView advanced analytics

Print/PDF generator

Live real-time performance monitoring

Breathe-Link® Medic Patient Data

Information subject to change due to manufacturers continuous programme of development.
